PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service

    Buy cheap PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service from wholesalers

    Buy cheap PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service from wholesalers
    • Buy cheap PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service from wholesalers
    • Buy cheap PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service from wholesalers
    • Buy cheap PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service from wholesalers

    PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service

    Ask Lasest Price
    Brand Name : Magstar
    Model Number : MSD
    Certification : ISO, CE,SGS,
    Price : Negotiable
    Payment Terms : L/C, T/T,
    Supply Ability : 10 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    PVC Imitation Marble Hdpe Extruder Machine Double Screw OEM Service

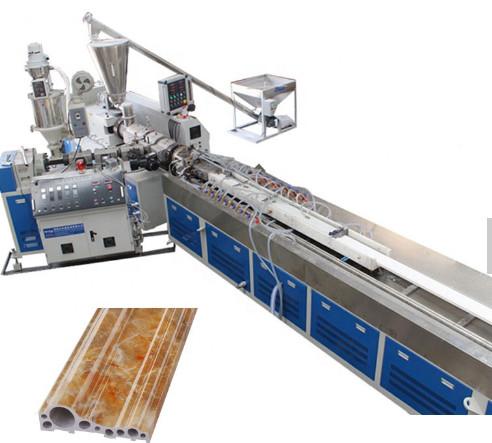

    ISO Standard Plastic PVC Imitation Marble Profile Extrusion Machine Line


    PVC Imitation Marble Profile Extrusion Line Making Machine of decoration moldings green, no formaldehyde, no radiation, containing antibacterial ingredients, can inhibit bacterial attachment and breeding to the hospital and use strict standards. Stone Sculpture Stone Sculpture moldings equipment wear compression moldings super performance , impact resistance, no deformation, can be reused, life is generally 20 to 30 years.


    Application of PVC Imitation Marble Profile

    • Building outdoor wall board, indoor decoration board, partition board in office and house.
    • Screen printing, flat solvent printing, engraving, billboard and exhibition display.
    • Chemical anti corrosion project, special cold project, environmental protection.
    • Sanitary wares, kitchen cabinet, washroom cabinet.


    Main Technology Parameters of PVC Imitation Marble Profile Extrusion Machine Line


    ModelYF120YF180YD240YF300YF600
    Profile Size Max.120*50mm180*50mm240*100mm300*120mm550*120mm
    Extruder ModelSJSZ51/105SJSZ51/105SJSZ65/132SJSZ65/132SJSZ80/156
    Main Motor18KW22KW37KW37KW55KW
    Capacity ( Max. kg/h )120kg/h150kg/h280kg/h280kg/h400kg/h
    Length18m20m25m25m28m

    Flowing chart of PVC Imitation Marble Profile Extrusion Process :


    Raw material power+ additive → mixing → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support →Stamping → haul-off → cutter → rack → finished product


    Advantage of PVC Imitation Marble Profile

    1. Waterproof, anticorrosive, moth-proofing and have broader application. It looks same as real marble , can absolutely replace the marble. Very popular in building and decoration market .
    2. Environmental protection, it can save the wood resources, make the earth greener! Environmental .protection needs everyone's effort!
    3. Recyclable :the waste frame in the manufacturing, the leftover frame of processing engineering can be recycled, save cost, also reduced the waste.
