Professional PVC Pipe Crusher/Crushing/Grinder/Granulator Machine
Manufacturer In China

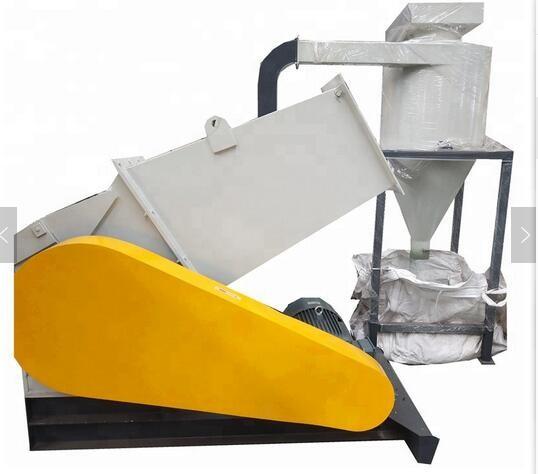

Plastic PVC pipe crusher machine is mainly used for breaking
relatively long special shaped material, such as plastic PVC pipe
,PVC profiles and some plastic bulks and make these wasted plastics and defective plastic products into
plastic granules
This SWP series plastic pipe crusher/grinder is a new kind of
breaking machine used for breaking plastic profiled material with
large hardness and tenacity. It is improved and extended on the
basis of SWP series. Fan motor is arranged for transport of broken
material, start up device is arranged.
The operation and maintenance & repair is rather simple. It is an
ideal model for breaking all sorts of pipe material and profiled
material.
Features of PVC Pipe Crusher/Crushing/Grinder/Granulator Machine
Main Technology of Plastic PVC Pipe Crusher
/Crushing/Grinder/Granulator Machine
| Model | SWP400 | SWP500 | SWP600 | SWP800 | SWP1000 |
| Motor Power( kw) | 15kw | 22kw | 37kw | 55kw | 75kw |
| Rotation Diameter | 430mm | 500mm | 560mm | 600mm | 1000mm |
| Rotary Blade(pcs) | 8 | 8 | 8 | 10 | 12 |
| Fixed Blade(pcs) | 2 | 4 | 4 | 4 | 6 |
| Mesh Diameter(mm) | 12 | 12 | 16 | 16 | 18 |
| Capacity(kg/h) | 150-200kg/h | 200-350kg/h | 400-600kg/h | 600-800kg/h | 800-1000kg/h |
What's the working processing of Plastic PVC Pipe Crusher
/Crushing/Grinder/Granulator Machine ?
Plastic PVC pipe crusher/grinder machine is one of main recycling
equipments of PVC pipe plant factory for recycling the wasted PVC
pipe or profiles. It's working process as following: The main function part of the plastic pipe crusher/granulator
machine is composed of two blade plates,fixed and movable.The fixed
blade is vertically fixed on the front wall of the machine body,the
movable blade is inclined and a crushing cavity which is of big top
and small bottom is formed.The movable blade plate swings back and
forth,up and down with an eccentric shaft,driven by the motor
through the pulley, so that the movable blade plate conducts a
Cyclical circulatory motion.The material is squeezed to break when
the two blade plates approach. Wasted plastic PVC pipe enters the
crushing cavity at the time of separation.The broken aggregate
discharges from the outlet through mesh screen.
Magstar Machinery Makes Plastic PVC Pipe Crusher
/Crushing/Grinder/Granulator Machine in China
Established in 2008, we, Magstar Machinery, are one of the most
accomplished manufacturers of Plastic PVC Pipe
Crusher/Grinder/Granulator machine, PVC Pipe Belling Machine, PVC
Pipe Slotting Machine and PVC Pipe Thread Cutting Machine and much
more. Our products are well known for their durability, strength,
and high accuracy. These products are available with customized
required from our valuable customers.
SWP Series PVC Pipe Crusher/Granulator Machine is a necessary
recycling machine for the PVC pipe or PVC profile manufacturing
plant factory. We are instrumental in offering a wide range of PVC Pipe Crushing
Machine to our esteemed clients. According to customer material and
capacity required, we can offer different types of crushers for
customers choose.
Our product of PVC pipe crusher/granulator machine is manufactured
using top quality raw material and famouse brands parts which has
enabled us in delivering quality machines to our customers. Offered
machine is manufactured under the direction of our experienced team
of professionals, using best-in-class components and progressive
techniques in line with set international standards. Also, proposed
machine is stringently tested on defined parameters to ensure its
defect-free nature. Available in various design and technical
specifications, this PVC Pipe crushing/granulator Machine can be
purchased from us at most reasonable rate.
In order to deliver quality machines to our clients, our machines
are all made according to customized requires .
these products are stored under proper warehousing facilities
ensuring that the products are in a safe environment. Our
proficient team members also ensure that the products meet the set
standards of durability & efficiency and are also delivered on
time.
